Wire And Cable Machine 1.0~4.0mm Steel Wire Armouring Machine Rigid Type Steel Armoring Machine

Product Categories

Anhui Herrman Machinery Co.,ltd

Contact Now

Name: Wire And Cable Machine 1040mm Steel Wire Armouring Machine Rigid Type Steel Armoring Machine
Brand: Herrman
Price: 100 USD

Brand Name : Herrman

Model Number : 500, 630, 710

Certification : CE, ISO, SGS

Place of Origin : China

MOQ : 1 set

Price : USD100,000 - 500,000 / set

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 50 sets per year as per request

Delivery Time : 120 days upon receipt of deposit.

Packaging Details : Plastic film

Usage : Steel Wire Armoring

Steel Wire Diameter : 1.0~4.0mm

Material : Low Carbon Steel Wire

Max. Linear Speed : 40/min

Motor Power : 90KW

Motor : SIEMENS

Bearing : NSK

Bobbin Loading : Automatic

Contact Now

Wire And Cable Machine 1.0~4.0mm Steel Wire Armouring Machine Rigid Type Steel Armoring Machine

1. Application

It is used for steel wire armoring of power cable.

2. Type

- Transmission by separate motor / ground shaft.

- Bobbin loading by integral side-bottom loading / manual single loading

- Assemble body structure / Welding body structure

- Bobbin clamping by pneumatic / motorized

3. Main Technical Specification

Type		JLK-500 (Ground shaft) (Welding structure)	JLK-630 (Separate motor) (Assemble structure)	JLK-760 (Separate motor) (Assemble structure)
Single conductor dia.	Cu	1.5~5.0mm	1.5~5.0mm	1.5~5.0mm
	Al	1.8~5.0mm	1.8~5.0mm	1.8~5.0mm
	Al alloy	1.5~5.0mm	1.5~5.0mm	1.5~5.0mm
	Steel	0.9~3.2mm	0.9~3.2mm	0.9~3.2mm
Max. rotating speed	6B	190r/min	240r/min	210r/min
	12B	190r/min	220r/min	190r/min
	18B	170r/min	200r/min	170r/min
	24B	150r/min	180r/min	150r/min
	30B	130r/min	160r/min	130r/min
Motor power	6B	132KW	90KW	110KW
	12B		90KW	110KW
	18B		90KW	110KW
	24B		90KW	110KW
	30B		90KW	110KW
Max. working linear speed		40m/min	40m/min	40m/min
Pay off bobbin in cage		PND500	PND630	PND760

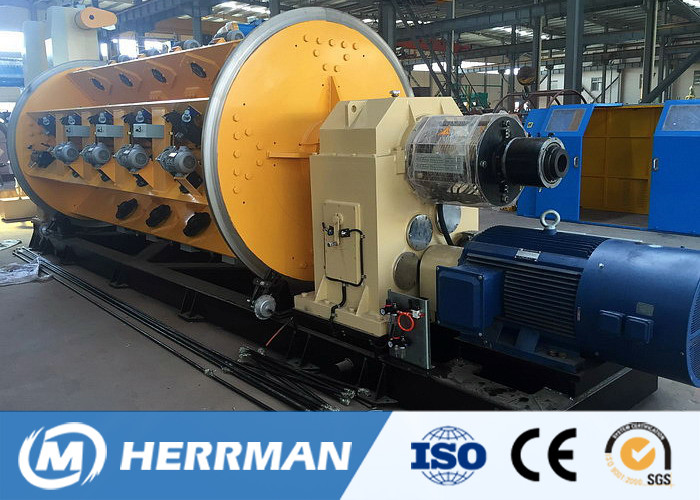

4. Photos

Wire And Cable Machine 1.0~4.0mm Steel Wire Armouring Machine Rigid Type Steel Armoring Machine
